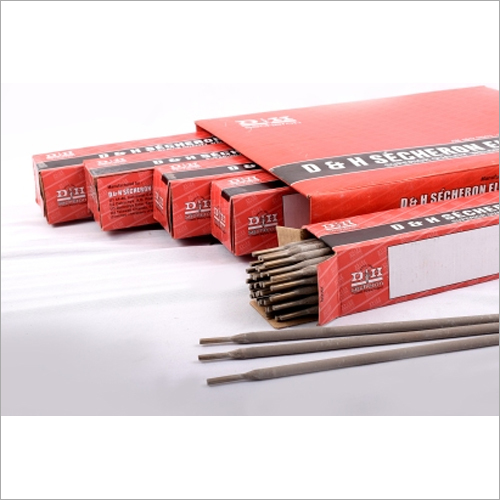

SUPRATHERME (SPL) Electrodes for Low Temperature Services

Name: SUPRATHERME (SPL) Electrodes for Low Temperature Services
Brand: D & H SECHERON ELECTRODES PRIVATE LIMITED
Price: 515 INR
Availability: InStock

Price 515 INR/ Kilograms

Get a Price/Quote

MOQ : 10 Kilograms, ,

SUPRATHERME (SPL) Electrodes for Low Temperature Services Specification

Application
Fabrication and repair of storage tanks, pipelines, and structural components exposed to sub-zero temperatures

Operating Voltage
AC/DC, 70-100 V

Composition
C: 0.08%, Mn: 1.0%, Si: 0.45%, S: 0.025%, P: 0.025%

Operating Temperature
Suitable for temperatures down to -60C

Material
Iron base, low hydrogen type

Diameter
2.5 mm, 3.15 mm, 4.0 mm

Flux Content
Low hydrogen, basic flux coating

Melting Point
Approx. 1450C

Coating
Thick extruded basic coating, moisture resistant

Tensile Strength
Minimum 550 MPa

Arc Stability
Excellent arc stability with minimal spatter

Impact Value at -60°C
34 Joules (min)

Welding Position
All position welding capability

Slag Removal
Easy and complete slag removal

Storage Recommendations
Keep dry, re-bake at 350°C for 1 hour if necessary

Shelf Life
Up to 12 months under recommended storage conditions

Elongation
Minimum 24%

Packaging
5 kg and 20 kg hermetically sealed boxes

Yield Strength
Minimum 480 MPa

SUPRATHERME (SPL) Electrodes for Low Temperature Services Trade Information

Minimum Order Quantity
10 Kilograms, ,

Supply Ability
10000 Kilograms, , Per Day

Delivery Time
1 Week

About SUPRATHERME (SPL) Electrodes for Low Temperature Services

SUPRATHERME (SPL) Electrodes for Low Temperature Services are the ones that protect the molten metal with a gaseous zone around the arc as well as the weld zone. The mineral coated electrode forms a slag deposit. SUPRATHERME (SPL) Electrodes for Low Temperature Services are used for welding steels, cast iron, and hard surfacing.

Reliable Performance in Extreme Conditions

SUPRATHERME (SPL) Electrodes are specifically developed to deliver dependable welds in extremely low temperatures, thanks to their high impact values and ductility at -60C. Their robust chemical composition and low hydrogen content minimize the risk of cracking, even in the most challenging environments. Featuring a thick, moisture-resistant flux coating, these electrodes guarantee stability and superior weld quality.

Versatility and Ease of Use

These electrodes are suitable for AC or DC welding, supporting a broad operating voltage range of 70-100 V. Their easy slag removal and excellent arc characteristics make them ideal for various applications, including the fabrication and repair of storage tanks, pipelines, and structural components exposed to cryogenic or sub-zero conditions. All-position welding capability enhances on-site adaptability.

Safe Storage and Handling

SUPRATHERME (SPL) Electrodes are best preserved in dry conditions to maintain quality. If exposure to moisture is suspected, a simple re-baking process at 350C for one hour restores their effectiveness. With a shelf life of up to 12 months when stored properly, they are conveniently packaged in hermetically sealed 5 kg or 20 kg cartons for optimal protection during distribution and storage.

FAQ's of SUPRATHERME (SPL) Electrodes for Low Temperature Services:

Q: How should SUPRATHERME (SPL) Electrodes be stored to maintain their shelf life?

A: These electrodes should be kept in dry environments to preserve their integrity. If absorbed moisture is suspected, re-bake them at 350C for one hour. Under recommended conditions, the shelf life extends up to 12 months.

Q: What are the primary applications for SUPRATHERME (SPL) Electrodes?

A: SUPRATHERME (SPL) Electrodes are ideal for fabricating and repairing storage tanks, pipelines, and structural components that operate in sub-zero temperatures, down to -60C.

Q: When should I use the re-baking process for SUPRATHERME (SPL) Electrodes?

A: Re-bake the electrodes at 350C for one hour if they have been exposed to moisture or humidity to restore optimal performance and prevent hydrogen-induced weld defects.

Q: Where are these electrodes typically used in industry?

A: They are commonly employed in sectors such as petrochemical, oil and gas, and heavy structural fabrication, particularly where components are exposed to very low service temperatures.

Q: What benefits does the low hydrogen, basic flux coating provide?

A: The low hydrogen, basic flux coating minimizes hydrogen uptake during welding, significantly reducing the risk of cold cracking, and contributes to excellent arc stability and easy slag removal.

Q: Which welding positions are suitable for SUPRATHERME (SPL) Electrodes?

A: They are engineered for all-position welding, offering flexibility for horizontal, vertical, overhead, and flat positions, accommodating diverse fabrication and repair needs.
